USB & 5-pin MIDI
USB-C on the controller is used for USB-MIDI and to power the board.

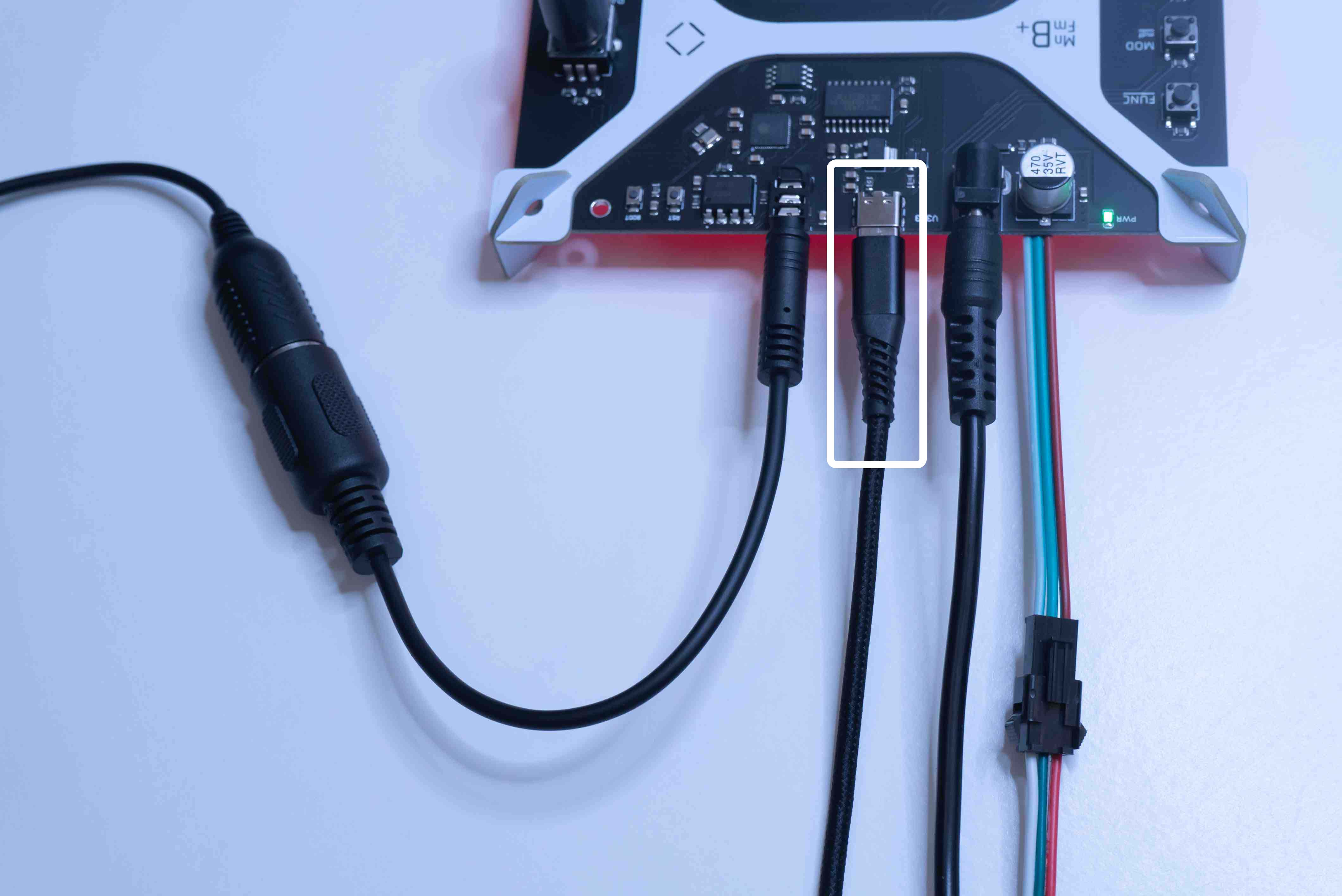

MAINFRAME-B+ USB connection.

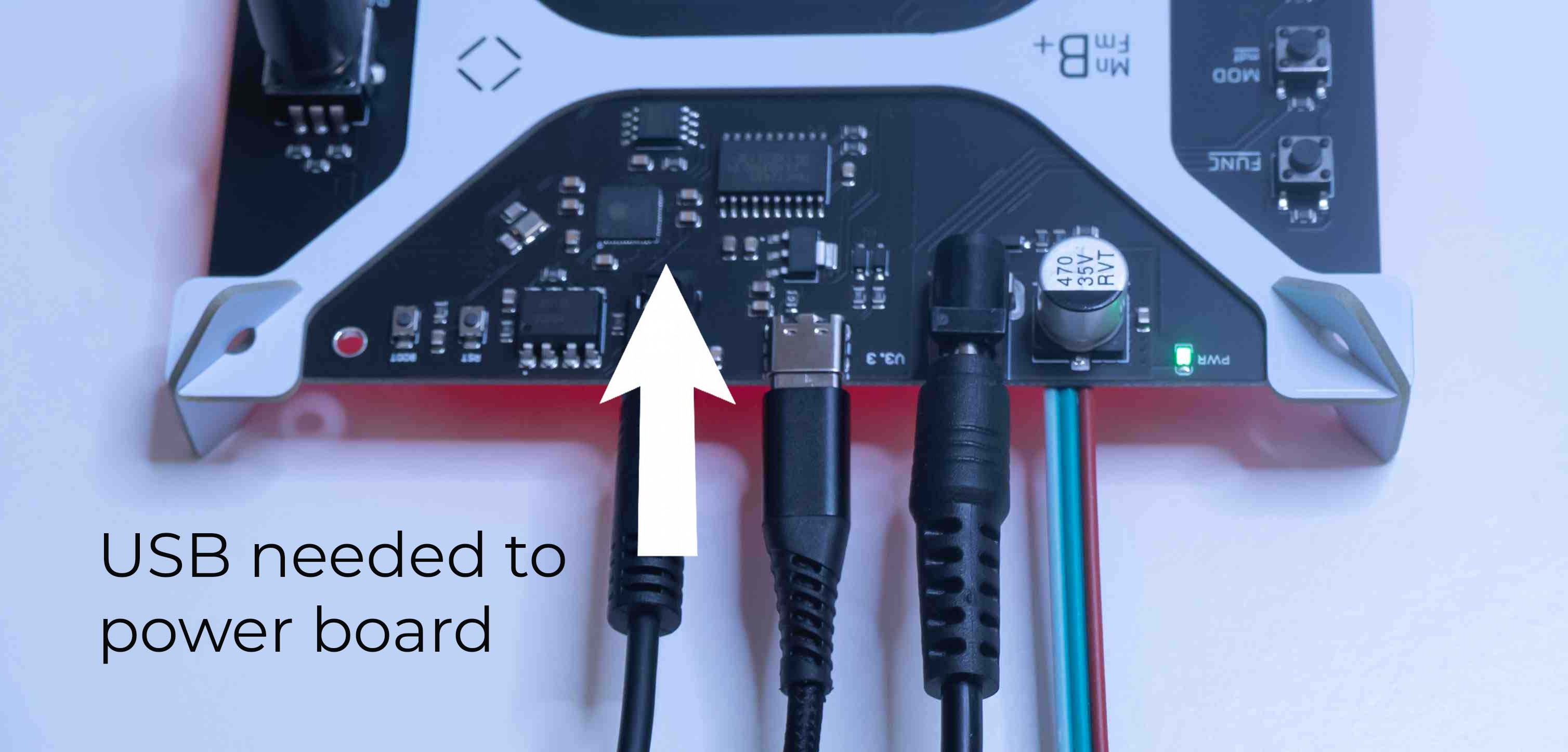

USB power connection.
The controller requires USB-A on the host side. USB-C to USB-C is not supported in this version.
USB cable.
5pin MIDI (B+ only)

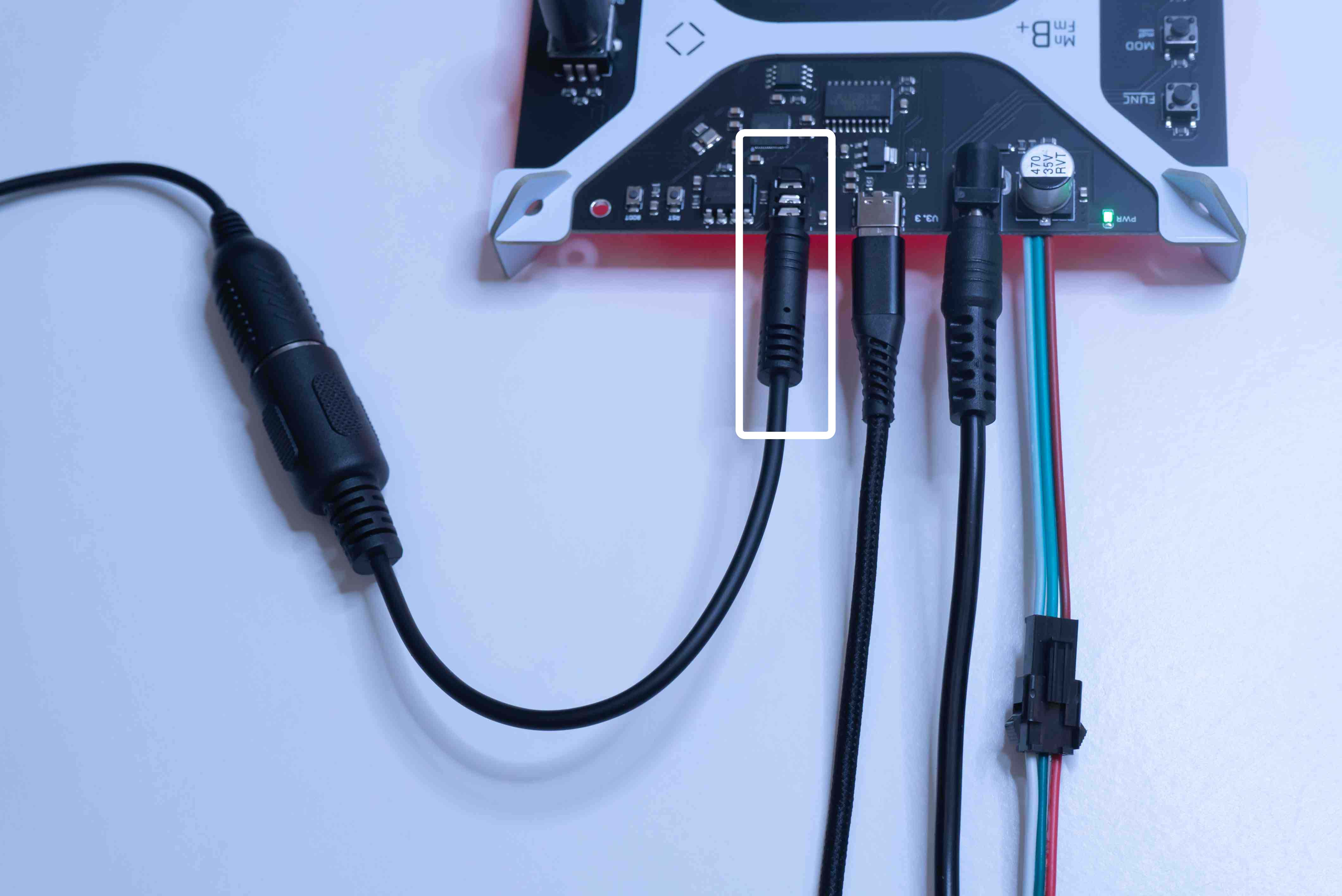

MAINFRAME-B+ MIDI input.

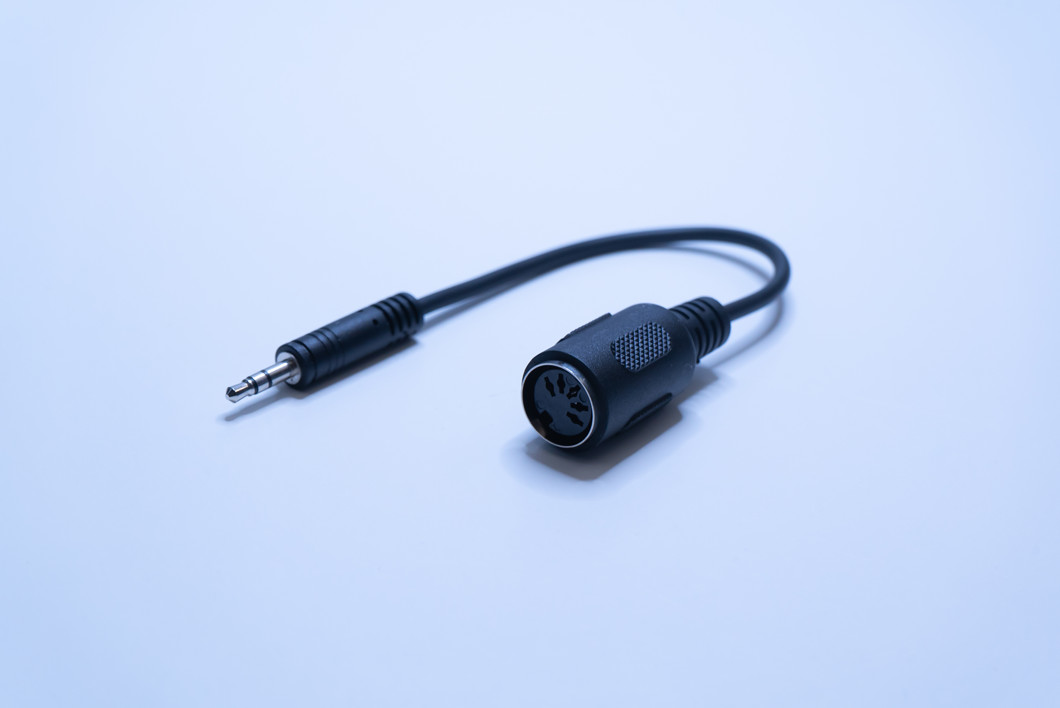

3.5mm TRS to 5-pin MIDI dongle.
Required for B+ to connect a 5-pin MIDI cable. The dongle type is Type A.
For connection process, see Connect Hardware.
